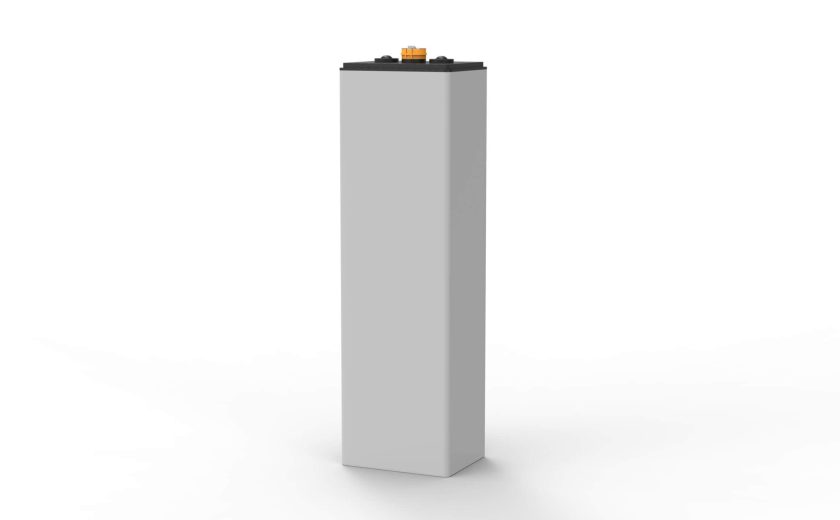

RTRH Traction battery

RTRH Traction battery is mainly used as DC for portage truck, forklift in warehouses and docks, and can also be used as correlative power supply in other aspects.

Traction cells are mainly used in heavy industrial electrical applications, such as: electric forklifts, electric trucks, large industrial cleaning machines, tower wagons etc.

The cells are composed of positive tubular plates and negative grid plates, which guarantee a higher capacity and longer life than the conventional batteries with flat plates. The positive and negative plates are separated by a micro-porous separator in order to avoid mutual contact and short circuits. The plates are packed in a polypropylene container that is resistant to vibrations. At the bottom of this container, there is a rest room to collect the precipitate and thus to prevent short circuits. On top of the cells, there is a lid to prevent the coming-up of the separators by vibrations and shocks and causing a short circuit. The lid also protects against acid and protects the plates and the separators during filling. The cells are standard equipped with manual filler caps and a little basket which simplifies the refilling (refill up to the bottom of the basket).

Description
  1. Robust, flooded tubular technology.
  2. Highest standards of design, materials and workmanship.
  3. Outstanding deep cycling capacity & reliability.
  4. Spines of antimonial lead filled with lead oxide and less maintenance.
  5. Gas circulation system, through gas circulate to mix round the electrolyte, avoid electrolyte stratification.
  1. DC power source for electric vehicles which widely used in airport, railway station, seaport and mining etc.
  2. Clean pollution-free DC power source
  3. Public communication, sports, and entertainment etc.

Technical Sheet

ModelRated voltageCapacityDimensions (mm)Weight (kg)Discharge Rate 5h Final Votage 1.70VDischarge Rate 0.5h Final Votage 1.50V
VAhLWHTHNo AcidWith AcidCurrent (A)Capacity (AH)Current (A)Capacity (AH)
RTRH1-1202120471983393716.17.82412012060
RTRH2-1802180651983393718.5113618018090
RTRH3-24022408319833937110.814.248240240120
RTRH3-300230010119833937113.217.460300300150
RTRH4-360236011919833937115.620.772360360180
RTRH5-420242013719833937117.923.984420420210
RTRH6-480248015519833937120.327.196480480240
RTRH7-540254017319833937122.730.3108540540270
RTRH8-60026001911983393712533.5120600600300
RTRH9-1602160471984044367.49.73216016080
RTRH10-24022406519840443610.313.748240240120
RTRH11-32023208319840443613.317.864320320160
RTRH12-400240010119840443616.221.880400400200
RTRH13-480248011919840443619.125.996480480240
RTRH14-56025601371984044362230112560560280
RTRH15-640264015519840443624.934128640640320
RTRH16-720272017319840443627.838.1144720720360
RTRH17-800280019119840443630.842.1160800800400
RTRH18-21022104719856960110.313.342210210105
RTRH19-31523156519856960114.418.863315315157.5
RTRH20-42024208319856960118.524.484420420210
RTRH21-525252510119856960122.630105525525262.5
RTRH22-630263011919856960126.735.6126630630315
RTRH23-735273513719856960130.841.2147735735367.5
RTRH24-840284015519856960134.946.8168840840420
RTRH25-94529451731985696013952.4189945945472.5
RTRH26-10502105019119856960143.15821010501050525
RTRH27-23022304719856960110.313.546230230115
RTRH28-34523456519856960114.419.369345345172.5
RTRH29-46024608319856960118.52592460460230
RTRH30-575257510119856960122.630.8115575575287.5
RTRH31-690269011919856960126.736.5138690690345
RTRH32-805280513719856960130.842.3161805805402.5
RTRH33-920292015519856960134.948184920920460
RTRH34-1035210351731985696013953.720710351035517.5
RTRH35-11502115019119856960143.259.523011501150575
RTRH36-24022404719856960110.814.248240240120
RTRH37-36023606519856960115.120.272360360180
RTRH38-48024808319856960119.526.396480480240
RTRH39-600260010119856960123.832.3120600600300
RTRH40-720272011919856960128.138.4144720720360
RTRH41-840284013719856960132.544.4168840840420
RTRH42-960296015519856960136.850.4192960960480
RTRH43-10802108017319856960141.256.521610801080540
RTRH44-12002120019119856960145.562.524012001200600
RTRH45-25022504719857460610.914.450250250125
RTRH46-37523756519857460615.220.575375375187.5
RTRH47-50025008319857460619.626.7100500500250
RTRH48-625262510119857460623.932.8125625625312.5
RTRH49-625262510119857460623.932.8125625625312.5
RTRH50-750275011919857460628.339150750750375
RTRH51-875287513719857460632.745.1175875875437.5
RTRH52-1000210001551985746063751.220010001000500
RTRH53-11252112517319857460641.457.422511251125562.5
RTRH54-12502125019119857460645.863.525012501250625
RTRH55-31023104719872075213.217.662310310155
RTRH56-46524656519872075218.625.293465465232.5
RTRH57-62026208319872075223.932.7124620620310
RTRH58-775277510119872075229.340.3155775775387.5
RTRH59-775277510119872075229.340.3155775775387.5
RTRH60-930293011919872075234.647.8186930930465
RTRH61-1085210851371987207524055.421710851085542.5
RTRH62-12402124015519872075245.362.924812401240620
RTRH63-12402124015519872075245.963.524812401240620
RTRH64-13952139517319872075250.770.427913951395697.5
RTRH65-15502155019119872075256.678.631015501550775
