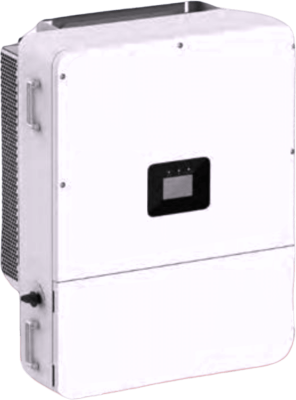

RPI-HV-30-H

Power your world with RPI-HV-30-H Inverter - Unleashing Innovation and Performance!

For Data Sheet Click here
RPI-HV-30-H

Renergy Inverters Features

Efficient Higher Revenue

  • 4 MPP trackers, 150% DC input oversizing
  • Maximum PV input current: 20A, compatible with high power PV modules
  • Maximum charge/discharge current: 200A, 150% EPS peak output power

Intelligent Simple O&M

  • IP66 protection degree
  • DC & AC Type II SPD: prevents lightning damage
  • Smart I‑V curve diagnosis function: accurately locates PV string faults and automatically detects faults

Flexible Abundant Configuration

  • Support optional AFCI function
  • EPS switching under 10 ms
  • Support multi-inverters in parallel
  • Support 100% unbalanced load
  • Standard generator interface, supports generator and smart load access

Technical Specifications

SPECIFICATIONS
MODELSRPI-HV-30-HRPI-HV-40-HRPI-HV-60-H
INPUT (PV)
Maximum PV Input Power48000Wp64000Wp96000Wp
Maximum PV Input Voltage1100V
Start Up Voltage2OOV
Rated Voltage620V
MPPT Voltage Range180V~1000V
Number of MPP Trackers4
Number of Strings per MPPT2
Maximum Current per MPPT40A
Maximum Short Circuit Current per MPPT60A
OUTPUT (ON GRID)
Rated Output Power30kW40kW60kW
Maximum Output Power33kVA44kVA66kVA
Maximum Output Current50A66.7A100A
Maximum Input Power from Grid45kW60kW90kW
Maximum Input Current from Grid68.4A91A136.4A
Rated Grid Voltage3/N/PE,230V/400Vac
Rated Grid Frequency50Hz/60Hz
THDv(@Rated Power)<3%
Power Factor0.8 leading ~ 0.8 logging
BATTERY
Battery TypeLithium
Battery Voltage Range300V-850V
Max Charge/Discharge Current44kW44kW66kW
Max Charge/Discharge Current2*100A
CommunicationCAN/RS485
OUTPUT (EPS)
Rated Output Power30kW40kW60kW
Maximum Output Current45.6A60.7A91A
Peak Output Power, Time1.5 times/10s
Switch Time<10ms
Rated Voltage3/N/PE,230V/400Vac
Rated Frequency50Hz/60Hz
Maximum AC passthrough current150A
OUTPUT (GENERATOR)
Maximum Output Power30kW40kW60kW
Maximum Output Current45.6A60.7A91A
Rated Voltage3/N/PE,230V/400Vac
Rated Frequency50Hz/60Hz
EFFICIENCY
Maximum Efficiency98.40%
European Efficiency97.50%
Battery Charge /Discharge Efficiency97.50%
PROTECTION
ProtectionDC Switch, DC Reverse, Polarity Protection, Anti-Islanding Protection, AC Short Circuit Protection, Residual Current Monitoring, Ground Fault Monitoring, Over Current /Voltage Protection, Battery Active Function, I-V Curve Scan
Surge ProtectionType II
AFCI ProtectionOptional
GENERAL DATA
DisplayLCD/LED
Weight92kg
Dimension (W*H*D)620*900*300mm
Operating Temperature Range-30°C~+60°C
Cooling MethodSmart Cooling
Protection DegreeIP66
Maximum Operating Altitude400m
Relative Humidity0~100%
Self Consumption<15W
TopologyTransformerless

RPI-HV-30-H System Diagram
