RPHV-5C

Power your world with RPHV-5C - Unleashing Innovation and Performance!

For Data Sheet Click here

Description

Applications

  • Renergy Power is a leading manufacturer of high-quality lithium-ion and VRLA batteries, catering to the growing demand for efficient and sustainable energy storage solutions. Our batteries are designed for a wide range of applications, including renewable energy systems, and industrial equipment, for residential and commercial applications.
  • We are committed to innovation, reliability, and environmental sustainability. Renergy Power aims to provide durable, high-performance batteries that empower a greener and more connected world.
  • RPHV-5C
  • RPHV-5C with 102.4kWh energy storage capacity, features high quality EVE Grade A cells and interactive interface through its touch screen. It has an independent intelligent temperature control system to ensure optimal system performance and safety.

Product Details

Grade_A_LifePo4_Cell

Grade A LifePo4 Cell

Simple_&_Friendly

Simple &Friendly

  • Pre-installed before delivery for easy and quick installation.
  • Backup time ranging from 2 to 5 hours.

Flexibility

Flexibility

  • Standard modular design with 5.12kwh per battery module.
  • Flexible design from 4~14 battery modules in series.

Convenience

Convenience

  • Standard 19-inch rack design for easy installation & maintenance.
  • Supporting USB software upgrade.

Safety_&_Reliability

Safety & Reliability

  • LiFePO4 battery technology for enhanced safety and extended lifespan.
  • 1+1 redundant design for improved reliability.
  • Equipped with air conditioning, cooling fans, and fire extinguishing system for optimal safety and temperature control in the battery module.

Cost_Effective_&_High_Efficiency

Cost Effective & High Efficiency

  • 100% Depth of Discharge (DOD) for maximum energy usage.
  • Enhanced return on investment through optimized performance.

Product Details

C&I 5
  • Three-layer architecture with integrated BMU, RBMS, and SBMS for enhanced multilevel protection.
  • Touchscreen interface for selecting different communication protocols.
  • High modularity degree, simple structure, easy installation and maintenance.
  • Integrated self-developed BMS for real-time monitoring and management.
  • Supports up to 10 energy systems in parallel, allowing maximum scalability.
  • PACK level fire-fighting System(optional).
  • Comprehensive battery protection strategy with fault detection and isolation measures to ensure energy storage system safety.
  • Utilizes mature, safe, economical, environmentally friendly lithium iron phosphate battery modules with an ultralong lifespan and high reliability.
  • Independent intelligent temperature control system minimizes temperature variations between modules, prolonging battery life.

Technical Specifications

Battery Parameters
ItemsDescription
Cell ChemistryLiFePO4
Module Energy5.12kWh
Module Nominal Voltage51.2V
Module Capacity100Ah
Battery Module Qty10*2
System Energy102.4kWh
System Nominal Voltage512V
Operating Voltage Range456V~576V
Cycle Life8000 50% DOD, 6000 times 80% DOD, 4000 100% DOD (0.2, 25°C)
Charge/Discharge EfficiencyMax 0.5C
Weight1100mm/1080mm/2380mm
Dimensinons W*D*H1430kg
Operating Temperature Range-25°C~+50°C
Cooling ModeAir Conditioner

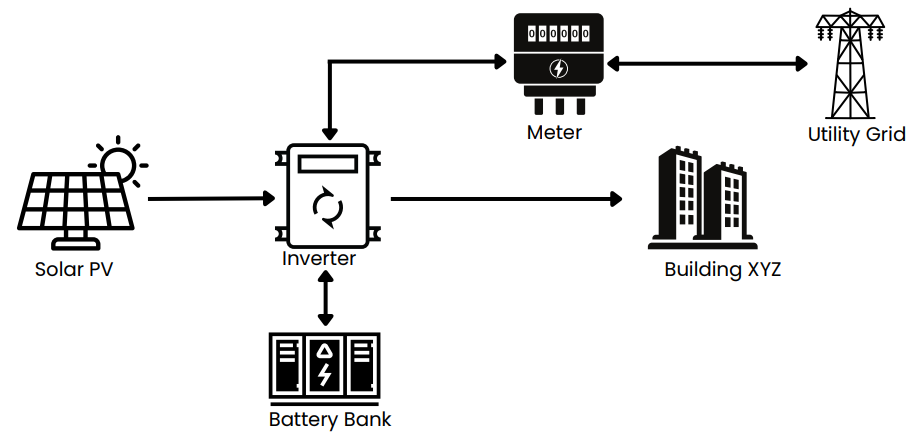

System Diagram

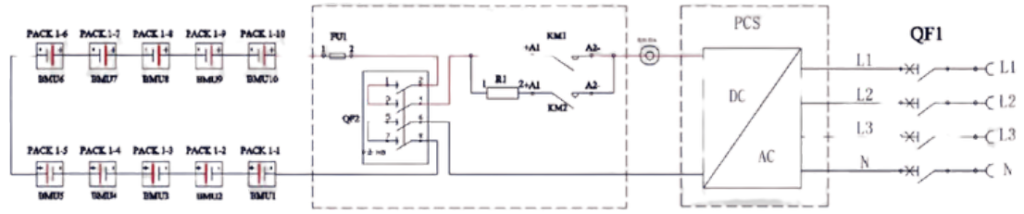

Electrical Primary Diagram
