RPHV-4C

Power your world with RPHV-4C - Unleashing Innovation and Performance!

For Data Sheet Click here

Description

Applications

  • Renergy Power is a leading manufacturer of high-quality lithium-ion and VRLA batteries, catering to the growing demand for efficient and sustainable energy storage solutions. Our batteries are designed for a wide range of applications, including renewable energy systems, and industrial equipment, for residential and commercial applications.
  • We are committed to innovation, reliability, and environmental sustainability. Renergy Power aims to provide durable, high-performance batteries that empower a greener and more connected world.
  • RPHV-4C
  • RPHV-4C has a capacity of 71.68kWh, LCD screen for communication protocol selection and integrated BMS for real time monitoring. It also offers comprehensive energy storage system safety with BMU, RBMS and SBMS architecture.

Product Details

Grade_A_LifePo4_Cell

Grade A LifePo4 Cell

Simple_&_Friendly

Simple &Friendly

  • Pre-installed before delivery for easy and quick installation.

Flexibility

Flexibility

  • Standard modular design with 5.12kwh per battery module.
  • Flexible design from 4~14 battery modules in series.

Convenience

Convenience

  • Standard 19-inch rack design for easy installation & maintenance.
  • Supporting USB software upgrade.

Safety_&_Reliability

Safety & Reliability

  • LiFePO4 battery technology for enhanced safety and extended lifespan.
  • 1+1 redundant design for improved reliability.
  • Equipped with air conditioning, cooling fans, and fire extinguishing system for optimal safety and temperature control in the battery module.

Cost_Effective_&_High_Efficiency

Cost Effective & High Efficiency

  • 100% Depth of Discharge (DOD) for maximum energy usage.
  • Enhanced return on investment through optimized performance.

Product Details

C&I 5
  • Three-layer architecture with integrated BMU, RBMS, and SBMS for enhanced multilevel protection.
  • Touchscreen interface for selecting different communication protocols.
  • High modularity degree, simple structure, easy installation and maintenance.
  • Integrated self-developed BMS for real-time monitoring and management.
  • Supports up to 10 energy systems in parallel, allowing maximum scalability.
  • PACK level fire-fighting System(optional).
  • Comprehensive battery protection strategy with fault detection and isolation measures to ensure energy storage system safety.
  • Utilizes mature, safe, economical, environmentally friendly lithium iron phosphate battery modules with an ultralong lifespan and high reliability.
  • Independent intelligent temperature control system minimizes temperature variations between modules, prolonging battery life.

Technical Specifications

Technical Specifications
ItemsDescription
Module Energy5.12kWh
Module Nominal Voltage51.2V
Module Capacity100A
Battery Module Qty 1 in series14
System Nominal Voltage (V)716.8V
Charge Voltage(V)772.8V~806.4V
Cut-Off Discharge Voltage(V)608.4V
Float Charge Voltage(V)761.6V~772.8V
System Energy71.68kWh
Recommended Depth Of Discharge90%
Storage Temperature0°C~45°C
Communication PortCAN/RS485
Status IndicatorRUN-Green Light; Alarm-Red Light
IP Rating Of EnclosureIP20
Dimensions [mm](W*D*H)800*1300*1500
Installation LocationRack/Cabinet,Indoor
Cycle Life8000 50% DOD, 6000 times 80% DOD, 4000 100% DOD (0.2, 25°C)
Warranty5 Years
CertificationIEC62619,UN38.3,MSDS

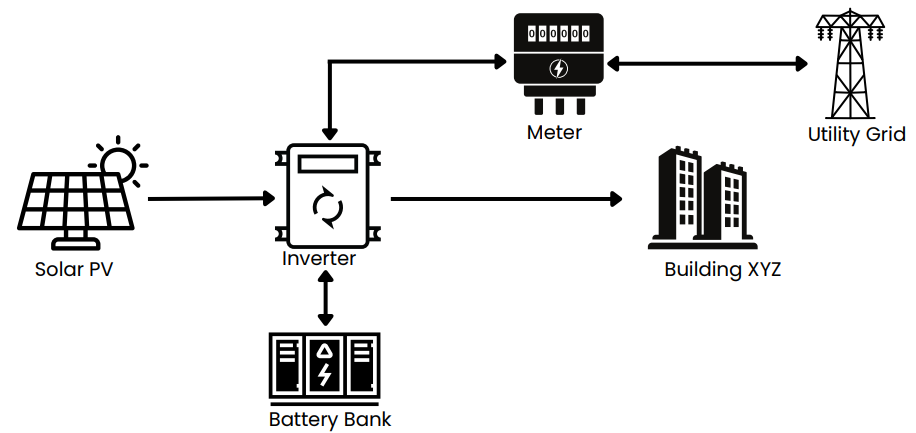

System Diagram
