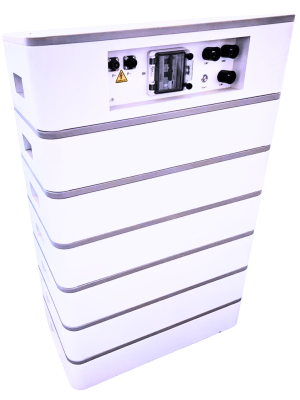

HV-S20kwh

Power your world with HV-S20 - Unleashing Innovation and Performance!

For Data Sheet Click here
HV-S20 kwh

Description

Applications

  • Renergy Power established in 2016 in the United Kingdom, is a leading manufacturer of premium Lithium-ion and VRLA batteries. We were founded to meet the increasing demand for efficient and sustainable energy storage solutions.
  • Our batteries are engineered for diverse applications, ranging from renewable energy systems to industrial equipment, serving both residential and commercial needs. With a strong focus on innovation, reliability, and environmental sustainability, Renergy Power is dedicated to delivering long-lasting, high-performance batteries that help build a greener, more connected future.
  • HV-S20
  • HV-S20kwh offers 20kWh High Voltage - 354.8V~441.6V- energy storage capacity along with BMU, RBMS and SBMS protection, a touchscreen interface for protocol selection, scalability, and real-time monitoring through an integrated BMS.

Product Details

Safety_&_Reliability

Modular Design

  • Scalable system with flexible energy storage to adapt to residential needs

Simple_&_Friendly

Safety & Stability

  • Equipped with an advanced BMS for enhanced system protection

Flexibility

Seamless Intergration

  • Easy installation with integrated storage modules & high voltage box

Convenience

Customizable

  • Tailored options for logos, colours and configuration to fit specific requirements

Flexibility

Advanced Display

  • Colourful LCD screen for real-time system monitoring & performance tracking

Cost_Effective_&_High_Efficiency

High-Efficiency Power

  • Reliable and efficient energy output for consistent performance

Product Details

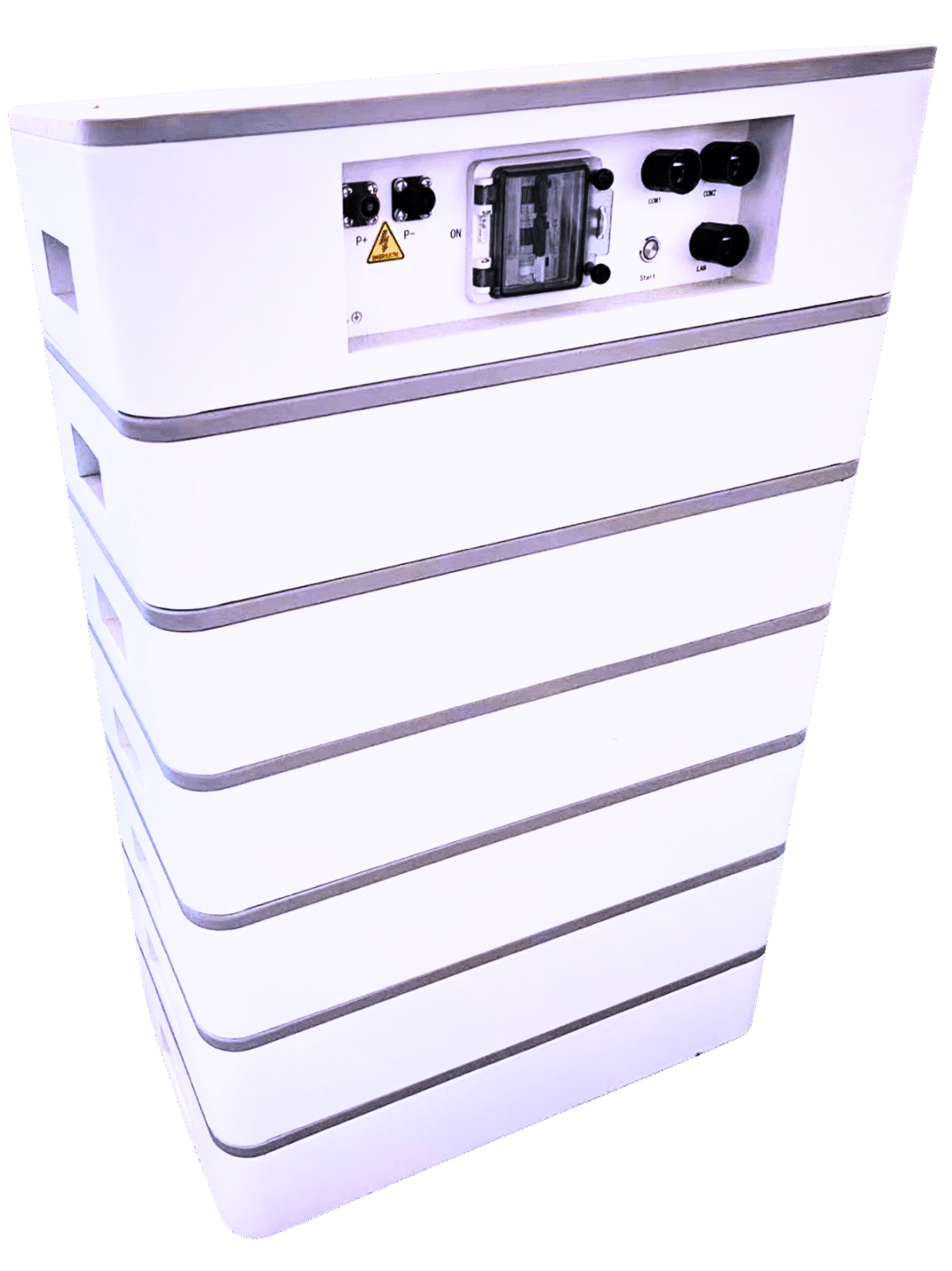

HV-S20 kwh
  • Three-layer architecture with integrated BMU, RBMS, and SBMS for enhanced multilevel protection.
  • Touchscreen interface for selecting different communication protocols.
  • High modularity degree, simple structure, easy installation and maintenance.
  • Integrated self-developed BMS for real-time monitoring and management.
  • Supports up to 10 energy systems in parallel, allowing maximum scalability.
  • PACK level fire-fighting System(optional).
  • Comprehensive battery protection strategy with fault detection and isolation measures to ensure energy storage system safety.
  • Utilizes mature, safe, economical, environmentally friendly lithium iron phosphate battery modules with an ultralong lifespan and high reliability.
  • Independent intelligent temperature control system minimizes temperature variations between modules, prolonging battery life.

Technical Specifications

Technical Specifications
ItemsDescription
Nominal Voltage51.2
Module Capacity50Ah
Nominal Energy2.56kWh
Allowed Modules in Series8
System Nominal Voltage (V)409.6V
Operating Voltage Range354.8V~441.6V
System Energy20.48kWh
Max. Charging/Discharging Current50A
Recommended Charging /Discharge Current25A
Peak Current75A@25
Dimension(W/D/H,mm)Approx 650*360*1500
Temperature(°C)Discharging: -200°C~55°C Charging: 0°C~55°C Storage: 0°C~45°C
IP RatingIP55(Natural Heat Dissipation)
Recommended Depth of Discharge80%
Cycle Life0.5C/0.5, 25°C, 6000 times
Warranty5 Years
CertificationCE,UN38.3
High VoltageBox
Working Voltage Range100~700Vdc
Nominal Charge & Discharge Current50A
Max. Charge & Discharge Current125A(160A,200A250A optional)
AC Input Rating85V~264Vac1Amax.
Operating Temperature Range-20~60
Dimensions (W/D/H,mm)650*360*172
Approximate Weight12kg
Lithium Iron Phosphate Battery
Nominal Voltage51.2V
Rated Capacity50Ah
Rated Energy5.12kWh
Nominal Charge & Discharge Current25
Peak Discharge Current (A)@2s75@2s
Dimension650*360*133
Approximate Weight30kg

System Diagram
