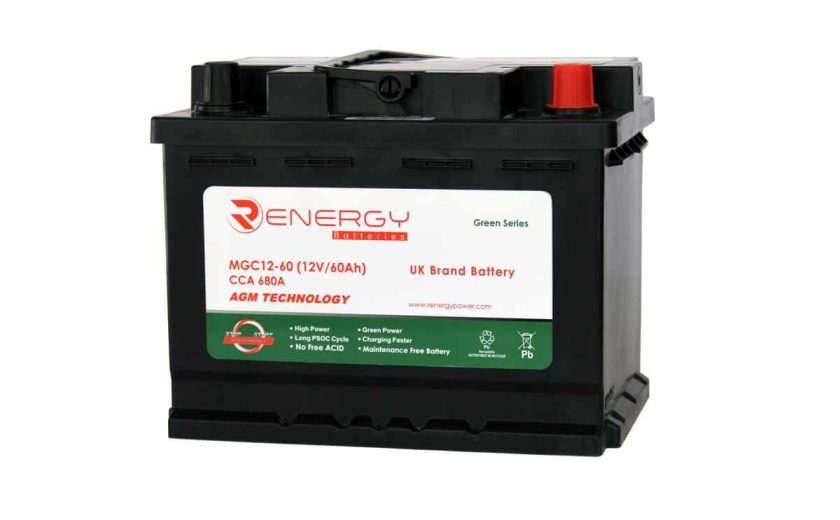

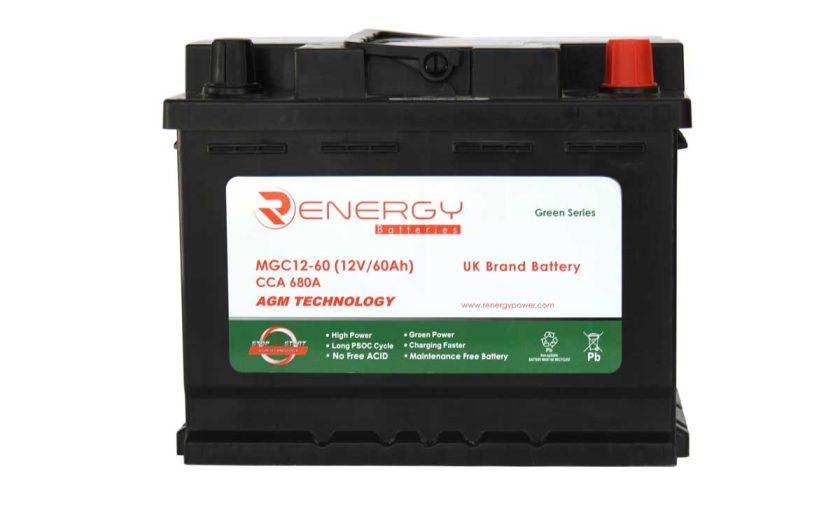

MGC series is an AGM technology meets the highest requirements in Start-Stop/Micro Hybrid applications. Their cutting-edge of technology give AGM batteries a cyclic lifetime that is more than three times of a conventional battery. It is also of advantage in vehicles where the battery is especially challenged by many electric consumers with high current demand (park heating, comfortable infotainment, windshield heating etc.). As the acid is entirely absorbed by a glass mat, AGM battery is absolutely leakage-proof in all installation places and even when the box is damaged.
| Type | Voltage | C20 | RC | CCA | Overall Dimensions(mm) | Terminal | |||
|---|---|---|---|---|---|---|---|---|---|
| V | Ah | Min | @0℉/-18℃ | L | W | H | TH | ||
| MGC 12-50 | 12 | 50 | 80 | 570 | 207(8 1/8) | 175(7) | 190(7 2/4) | 190(7 4/8) | T2 |
| MGC 12-60 | 12 | 60 | 100 | 680 | 242(9 4/8) | 175(7) | 190(7 2/4) | 190(7 4/8) | T2 |
| MGC 12-70 | 12 | 70 | 120 | 760 | 278(11) | 175(7) | 190(7 2/4) | 190(7 4/8) | T2 |
| MGC 12-80 | 12 | 80 | 140 | 800 | 315(12 6/16) | 175(7) | 190(7 2/4) | 190(7 4/8) | T2 |
| MGC 12-92 | 12 | 92 | 160 | 850 | 353(13 14/16) | 175(7) | 190(7 2/4) | 190(7 4/8) | T2 |
| MGC 12-105 | 12 | 105 | 190 | 950 | 393(15 8/16) | 175(7) | 190(7(2/4) | 190(7 4/8) | T2 |
